MCP 9000 Stationary Concrete Pump
MCP 9000
• Superior metallurgy : Best in the market,
Hard chrome plated delivery cylinders, Carbide wear plate & High wear resistant S valve as standard offering,
• Simple hydraulic system with standard valve blocks.
• Twin pump circuit with sequential control.
• Automated greasing system.
• Low lying agitator with two high torque motors boosts the suction efficiency.
• Hopper with 600 litre capacity, designed without any dead angles. to improve the concrete feeding to the suction line.
• S valve with smooth reduction over longer distance (200x180) ensures very low pressure loss.
• Simple control panel with wired remote as a standard.
• Safety : warning lamps - low engine oil pressure, V-belt , battery charging.
• Bent plate type chassis with high section modulus.
• Heavy duty tail wheel.
MCP 9000 Stationary Concrete Pump Specification
| S.No | Parameters | Values | |
|---|---|---|---|
| 1 | Technical Identification Number | 3325 | |
| 2 | Differential Cylinder Drive | Rod Side | Piston Side |
| 3 | Maximum Concrete Pressure | 60 bar | 90 bar |
| 4 | Maximum theoritical output | 90 Cu.m | 60 Cu.m |
| 5 | Maximum number of strokes | 30 | 20 |
| 6 | Maximum horizontal placing distance | 350 m | 500 m |
| 7 | Maximum Vertical placing distance | 90 m | 130 m |
| 8 | Area Ratio (Hydraulic / Concrete) | 0.2 | 0.3 |
| 9 | Delivery cylinder diameter x stroke | 200 * 1600 | |
| 10 | Delivery cylinder volume(litre) | 50.3 * 2 | |
| 11 | Drive Cylinder | 110 / 63 | |
| 12 | Engine | ALU W06DTI | |
| 13 | Drive power | 133 KW | |
| 14 | Hydraulic circuit | Open Circuit | |
| 15 | Hydraulic Oil Volume | 450 Litres | |
| 16 | Volume of Hopper | 600 Litres | |
| 17 | Type of Valve | S Valve ( 8" ) | |
| 18 | Axle | Spring | |
| 19 | Auxiliary System ( Options ) | Compressor / Water Pump | |
| 20 | Weight | 5500 Kg | |
| 21 | Hopper Feeding Height | 1.3 m |

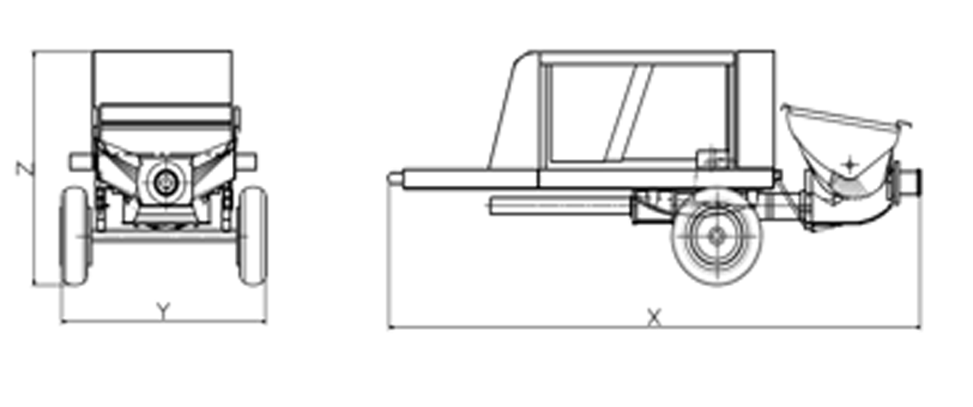

DIMENSIONS OF MCP 9000
DIMENSIONS (X x Y x Z) : 6800x2090x2250.

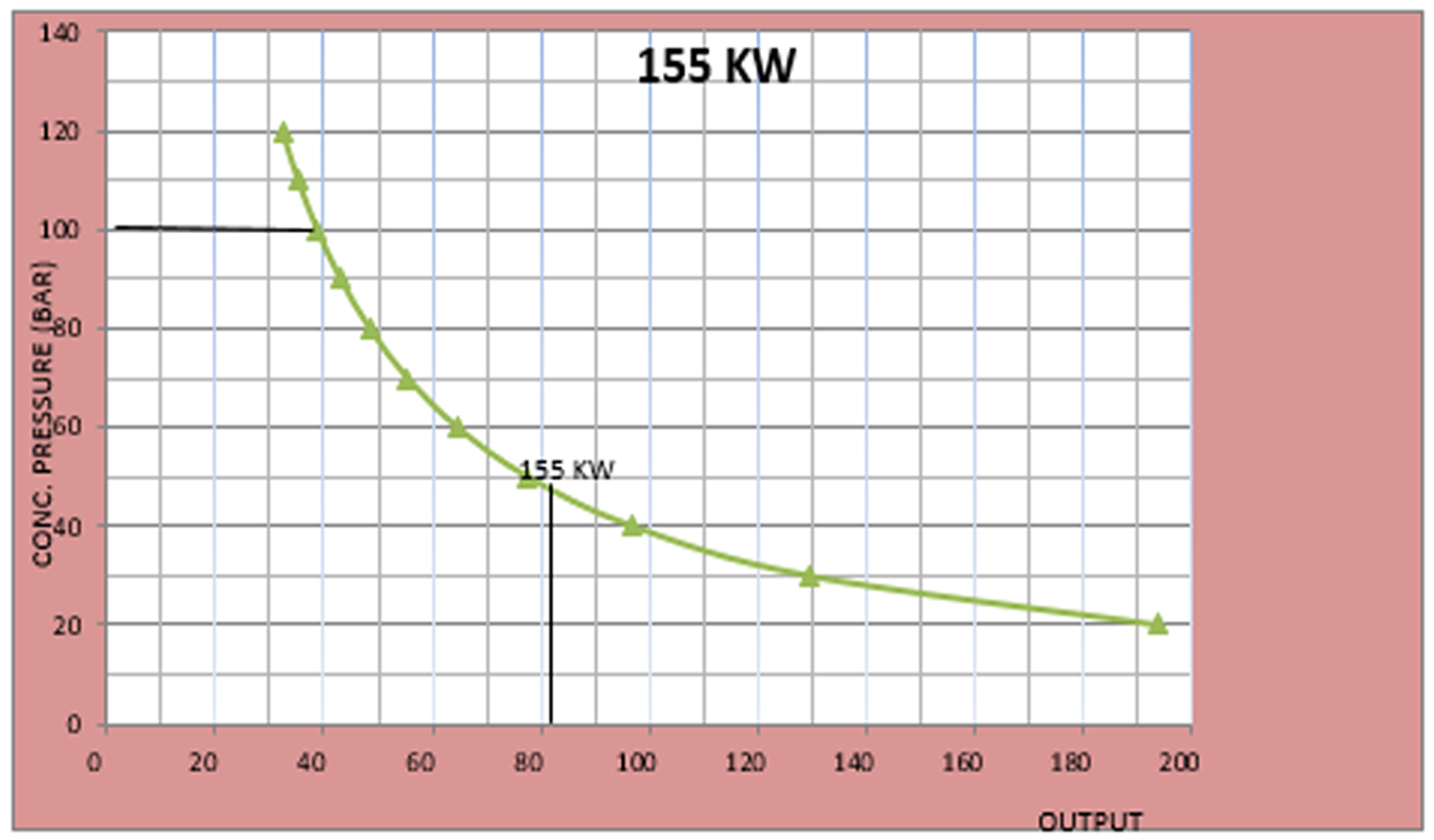

OUTPUT GRAPH
